Cylinder Handler

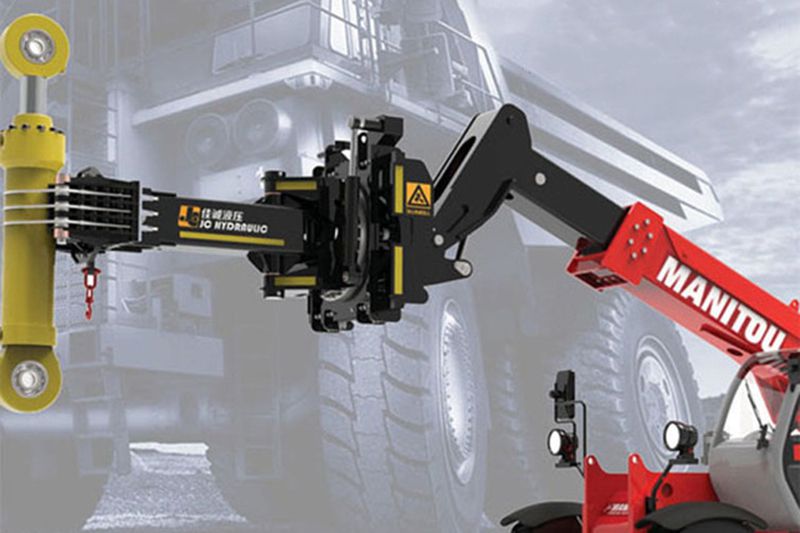

Telescopic handler with hydraulic cylinder clamp
Cylinder Handler
Telescopic handler with hydraulic cylinder clamp
JC-Hydraulic cylinder manipulator is applied to install or dismantle front and rear suspension cylinders and hoist cylinders of open-pit mining dump trucks. The manipulator chassis comes from overseas telehandlers’ brands. Its compact structure and mobility enables it to handle cylinders in limited space close to mining vehicles, boosting the handling efficiency and saving the labor and material costs. The manipulator is an industry-leading cylinder handling machines.
Features (Middle Cylinder Manipulator)
- 18 combined movements;
- Six combined movements controlled remotely;
- Reliable holding by steel rope.
Technical Parameters
| Rated Load | 4000kg (retracting)/1200kg (reaching) |
| Clamping Range | 250-530mm |
| Max Capacity | 4000 kg / 1200 kg |
| Combined Head Rotation | ±57.5° vertical |
| Side Shift | ±150mm |
| Extendable Range | 931mm |
| Jib Orientation | ±15° |
| Overall Dimensions | 3800 (reaching)*1470*1515mm |
JC-Hydraulic is a dedicated company with focus on the development and production of mining service vehicles and hydraulic cylinders. Our mining service vehicles are built for the service operations in the mining industry, aiming at minimizing equipment downtime, improving working efficiency and boosting productivity. The company is also known as a reliable manufacturer of hydraulic cylinders which can be used as cost-efficient replacement cylinders in mining equipment and construction machinery of many global renowned heavy equipment manufacturers, such as Caterpillar, Komatsu and Terex. JC-Hydraulic is your dependable one-stop source for the open-pit mining industry.
