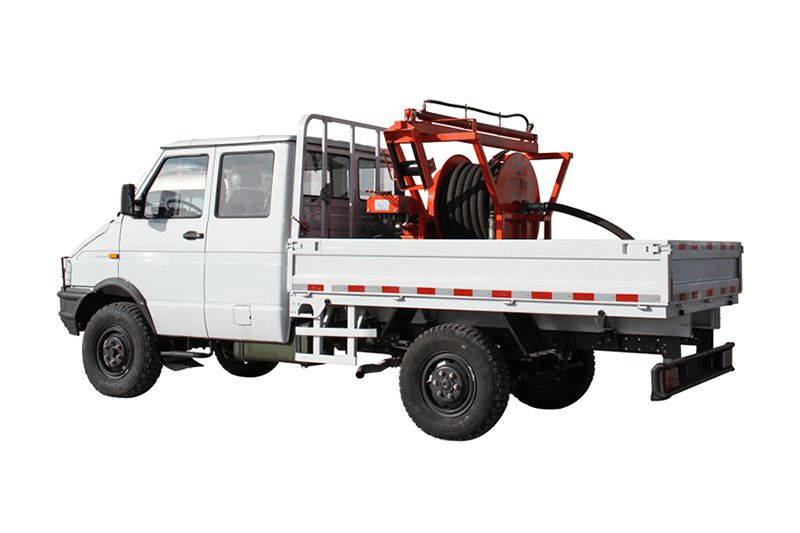

Blasthole Dewatering Truck
Dewatering system for mining operations
Blasthole Dewatering Truck
Dewatering system for mining operations

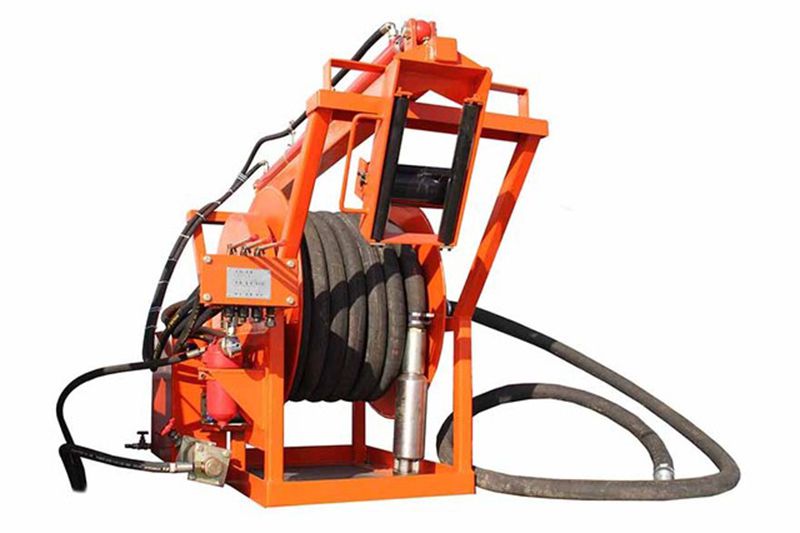

Blasthole dewatering trucks are specialized equipment mainly used to discharge water and mud slurry left in blastholes so as to make the holes qualified to be fed blasting materials. The truck’s discharging function is hydraulically driven by the power take off (PTO) at the chassis, involving hydraulic arm, submersible pump and hose roller.
Request a Quote
Features
- The dewatering truck chassis comes from IVECO 4*4 off-road vehicles, giving the truck excellent gradability, obstacle-crossing performance and braking capability;
- The advanced dewatering system ensures safe and easy operation and high efficiency;
- A hydraulic driving mechanism supported by the chassis PTO guarantees the truck’s easy operation.
Technical Parameters
Capacity of Submersible Pump | 0.34m³/min |
Dewatering Hose Length | 15m |
Hydraulic Head of Submersible Pump | 28m |
Extendable Part of Hydraulic Arm | 0-4m |
Hydraulic Arm Swing Angle | 15° |
Overall Dimensions | 5930(L)*1940(W)*2400(H) |
JC-Hydraulic is a dedicated company with focus on the development and production of mining service vehicles and hydraulic cylinders. Our mining service vehicles are built for the service operations in the mining industry, aiming at minimizing equipment downtime, improving working efficiency and boosting productivity. The company is also known as a reliable manufacturer of hydraulic cylinders which can be used as cost-efficient replacement cylinders in mining equipment and construction machinery of many global renowned heavy equipment manufacturers, such as Caterpillar, Komatsu and Terex. JC-Hydraulic is your dependable one-stop source for the open-pit mining industry.
